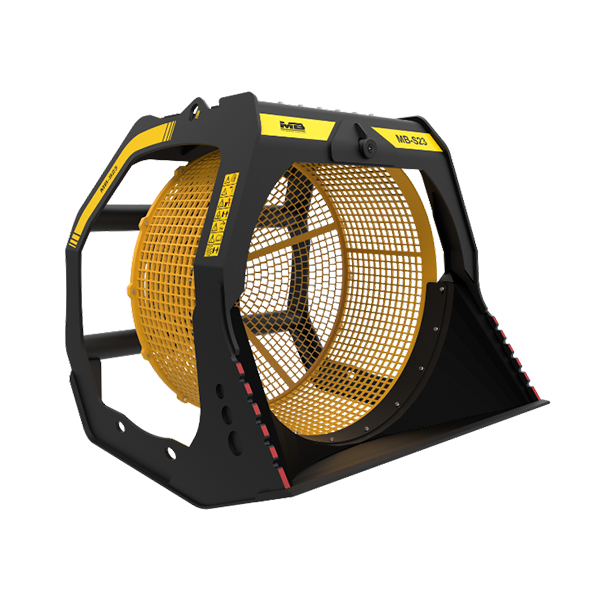

MB-S23 Screening Bucket
MB-S23 Screening Bucket – the largest screening bucket in the world for ultra-heavy excavators. Built for extreme performance in demanding quarry and mining operations.
MB Crusher MB-S23 – Largest Screening Bucket for Excavators (Extreme Volume Processing)
The MB-S23 screening bucket is the largest in the MB range and the largest screening bucket available globally. Designed for excavators from 35,000 – 50,000 kg, it delivers unmatched capacity and output for high-volume material screening projects.

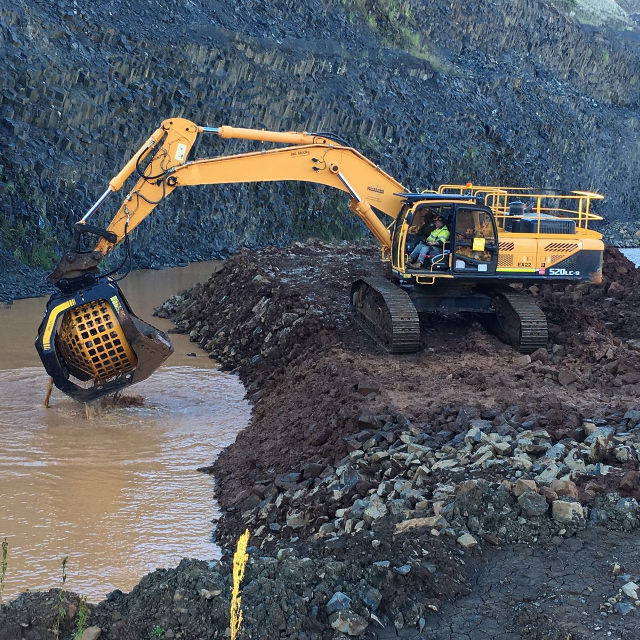

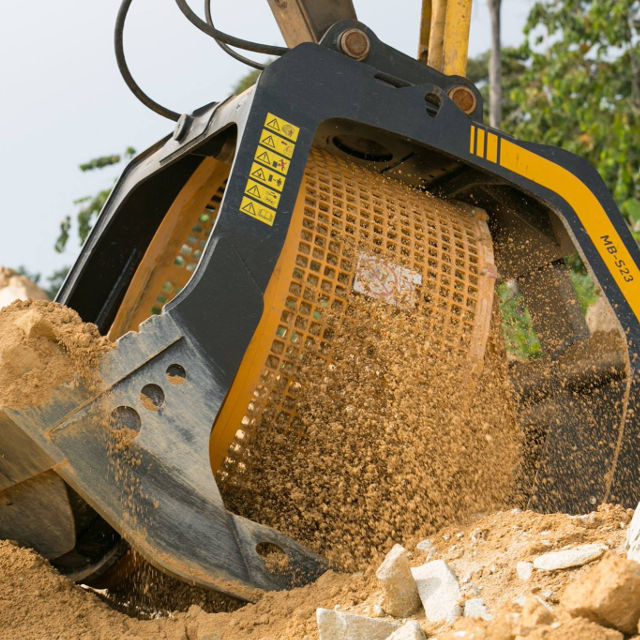

Ideal for pre- and post-crushing phases, it reduces crushing time by up to 60%. With a 3.75 m³ load capacity, it efficiently screens natural materials like quarry residues, dry soil, and river stones directly on-site, improving workflow and productivity.

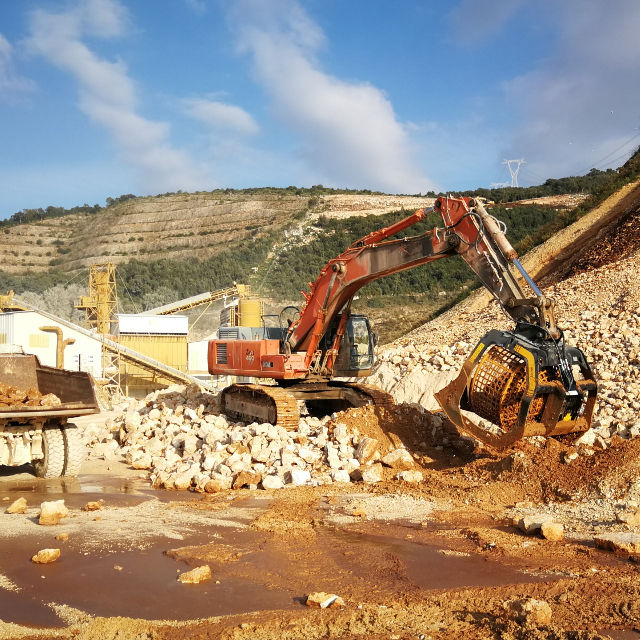

Its modular basket system with interchangeable panels allows for fast adjustment of screen size. Designed with reinforced MB engineering, the MB-S23 handles demanding environments such as mining, quarrying, and large-scale construction with ease.
| Specification | Value (Metric) |
|---|---|
| Recommended Excavator | 35,000 – 50,000 kg |
| Load Capacity | 3.75 m³ |
| Hydraulic Pressure | 320 – 350 bar |
| Back Pressure | < 5 bar |
| Oil Flow Rate | 160 – 180 L/min |
| Hydraulic Requirement Note | Hydraulic flow and pressure must meet required parameters. |
