MB BF150.10 Bucket Crusher for 70

BF150.10 Bucket Crusher

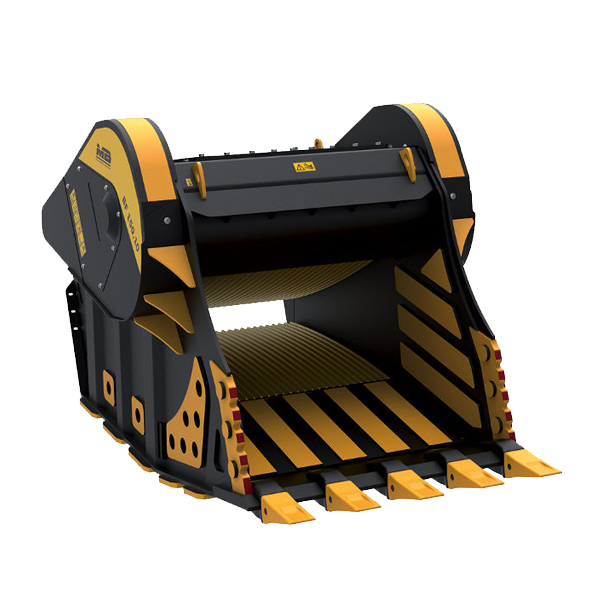

MB BF150.10 Bucket Crusher – the world’s largest crusher bucket, made for 70–100T+ excavators. Ideal for primary crushing in quarries, mining, and large-scale earthworks.

Category: Bucket Crushers

Get Price

Nationwide Service Policy

Nationwide & International Deliveries

Stock available in Cape Town, Bloemfontein and Midrand

Have a question about the BF150.10 Bucket Crusher?

Chat with an Expert

Download Spec Sheet

MB Crusher BF150.10 – Bucket Crusher for Excavators (World’s Largest Crusher Bucket)

The MB BF150.10 bucket crusher is truly unique — the largest of its kind in the world. Built for excavators over 70,000 kg, it delivers unmatched capacity, performance, and durability on the most demanding job sites.

Weighing over 10,500 kg and featuring a load capacity of 2.3 m³, the BF150.10 achieves production rates exceeding 120 m³/hour. Its massive 1,450 x 700 mm bucket opening makes it the ideal tool for primary crushing in quarrying and mining.

Engineered to operate with optimal hydraulic performance, both flow and pressure must meet MB’s high standards to unlock the full potential of this industrial-scale crushing bucket.

Specification	Value (Metric)
Recommended Excavator	70,000 – 100,000 kg
Load Capacity	2.3 m³
Mouth Opening	1,450 x 700 mm
Production Output	Up to 122 m³/hour
Hydraulic Pressure	230 – 280 bar
Back Pressure	< 10 bar
Oil Flow Rate	380

WORLD’S LARGEST CRUSHER BUCKET

The BF150.10 is unmatched in size and capacity, designed for large-scale crushing in mining, quarrying, and infrastructure projects where primary crushing is required onsite.

BUILT FOR 70T+ EXCAVATORS

This industrial-grade bucket crusher is built to match massive machines, offering high-volume output without the need for additional crushing infrastructure.

MONSTER CAPACITY & PRODUCTION

With a jaw opening of 1,450 x 700 mm and load capacity of 2.3 m³, the BF150.10 delivers over 120 m³/hour of output, crushing even the most difficult materials with ease.

HYDRAULICALLY OPTIMIZED FOR MAX PERFORMANCE

To achieve peak performance, the BF150.10 requires proper hydraulic pressure and flow. When matched correctly, it becomes one of the most efficient crushers in the industry.
